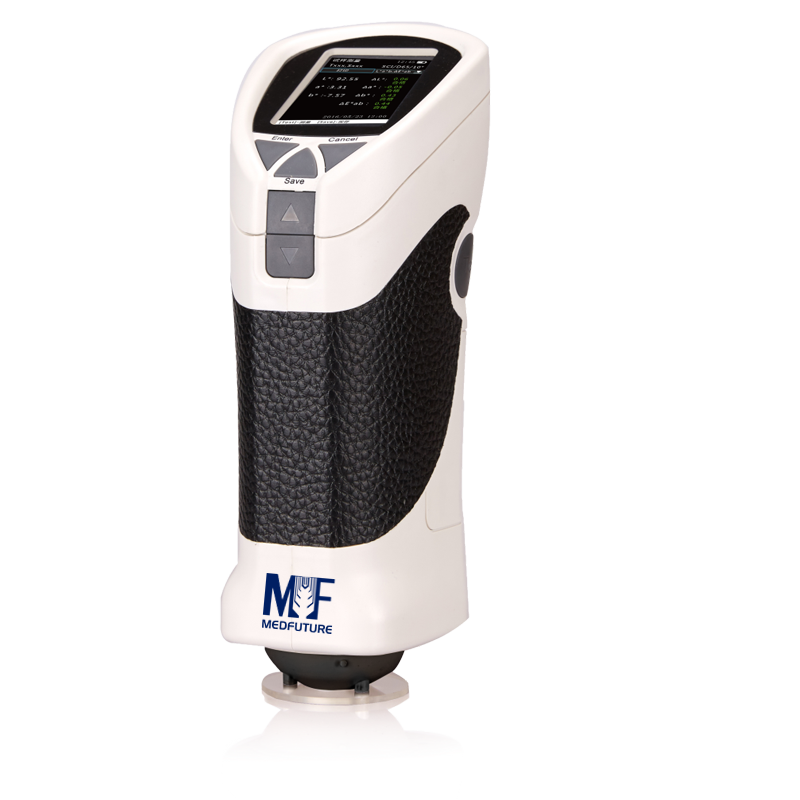

Spectral Colorimeter
Spectral colorimeter is the colorimeter which adopts the theory of spectrophotometer. It is widely used for plastic, printing, paint, ink, textile, dyeing and other industries for color management.
Application:
Spectral colorimeter is the colorimeter which adopts the theory of spectrophotometer. It is widely used for plastic, printing, paint, ink, textile, dyeing and other industries for color management.
Features:
1. Adopts spectral measurement working theory which greatly improve the accuracy of colorimeter.
2. Patented technology guarantees the measurement stability.
3. Obtain national metrology certification.
4. Ergonomic design.
5. Mass storage memory.
6. Spectrally balanced LED light source.
7. Automatic gloss compensation technology.
8. Innovative light splitting SCS optical engine.
Technical Parameters:
| Model | MF-SC280 | MF-SC280I | MF-SC286 | MF-SC288 |
| Illumination | di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standard） | |||
| Size of Integrating Sphere | Φ40mm, Avian diffused reflection surface coating | |||
| Illumination Light Source | CLED | |||
| Sensor | Array sensor | |||
| Wavelength | 400-700nm | |||
| Spectrum Resolution | 10nm | |||
| Measurement Time | 2s | |||
| Measurement Aperture | 11mm, optional 4mm,6mm,15mm | |||
| Repeatability | Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration) | |||
| Observe Angles | 2° and 10° | |||
| Light Source | A, C, D50 and D65 | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF，U35 | ||
| Display | Chromaticity value（L*a*b，L*C*h）, delta E value, pass/fail, color tendency, average, generate test report, spectrum reflectance figure /data | |||
| / | With camera to see the measurement area | With camera to see the measurement area, spectrum reflectance figure /data, manual input target data | ||
| Color Difference Formula | ΔE*ab, ΔE*CH | ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00 | ||
| Color Space | CIE-L*a*b,L*C*h, reflectance | CIE-L*a*b,L*C*h,XYZ,Yxy, reflectance | CIE-L*a*b,L*C*h, L*u*v ,XYZ,Yxy, reflectance | |
| Other | / | WI(ASTM E313-10,ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger，Ganz，Stensby)YI(ASTM D1925，ASTM E313-00,ASTM E313-73) | WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger，Ganz，Stensby) YI(ASTM D1925，ASTM E313-00,ASTM E313-73)metameric index ,staining fastness , Color fastness | |
| Data Storage | 20000 samples | |||
| Light Source Lifetime | 5 years, 1.5 million times | |||
| Other Function | / | Camera view, input color swatches | Camera view, input color swatches, mobile phone APP | |
| Screen | Panchromatic True Color Screen | |||
| Interface | USB2.0 | USB2.0, Bluetooth | ||
| Operating Temperature | 5~45℃, relative humidity 80% or below( at 35°C ),no condensation | |||
| Storage Temperature Range | -25℃ to 55℃, relative humidity 80% or below(at 35°C ),no condensation | |||
| Power Supply | Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V | |||
| Standard Accessories | Adapter, Operating Manual, Color Management Software, Drive Software, Electronic Manual, Color Management Guide, USB Cable, Black/white Calibration Tube, Protective Cover, Portable Bag, Electronic Color Charts | |||
| Optional | Micro Printer | |||
| External Size (W*D*H) | 250*210*100 mm | |||
| Gross Weight | 1Kg | |||
