Introduction

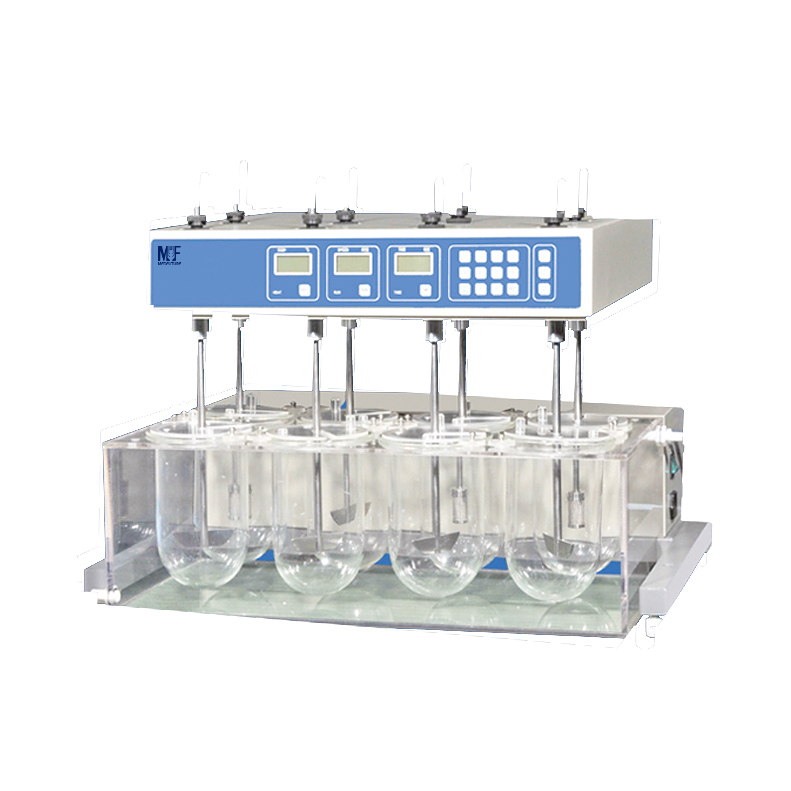

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Features:
1. It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
2. The head part of the instrument can be artificially turned over smoothly and flexibly.
3. The basket units and paddle units are made of imported stainless steel (SUS316L).
4. The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5. A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
6. It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
7. Automation: auto-test, auto-diagnose, auto-alarm.
Introduction
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Features:
1. It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
2. The head part of the instrument can be artificially turned over smoothly and flexibly.
3. The basket units and paddle units are made of imported stainless steel (SUS316L).
4. The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5. A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
6. It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
7. Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameters:Model | MFDT-8 |
Speed range | (20~200)rpm |
Speed accuracy | ±2rpm |
Temperature range | ambient to +45.0℃ |
Temperature Stability | ±0.3℃ |
Preset timing nine points | (1~999)min |
Time accuracy | ±0.5mm |
Paddle radial run-out | ±0.5mm |
Basket radial run-out | ±1.0mm |
Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
Dimension | (960*440*480)mm3 |
