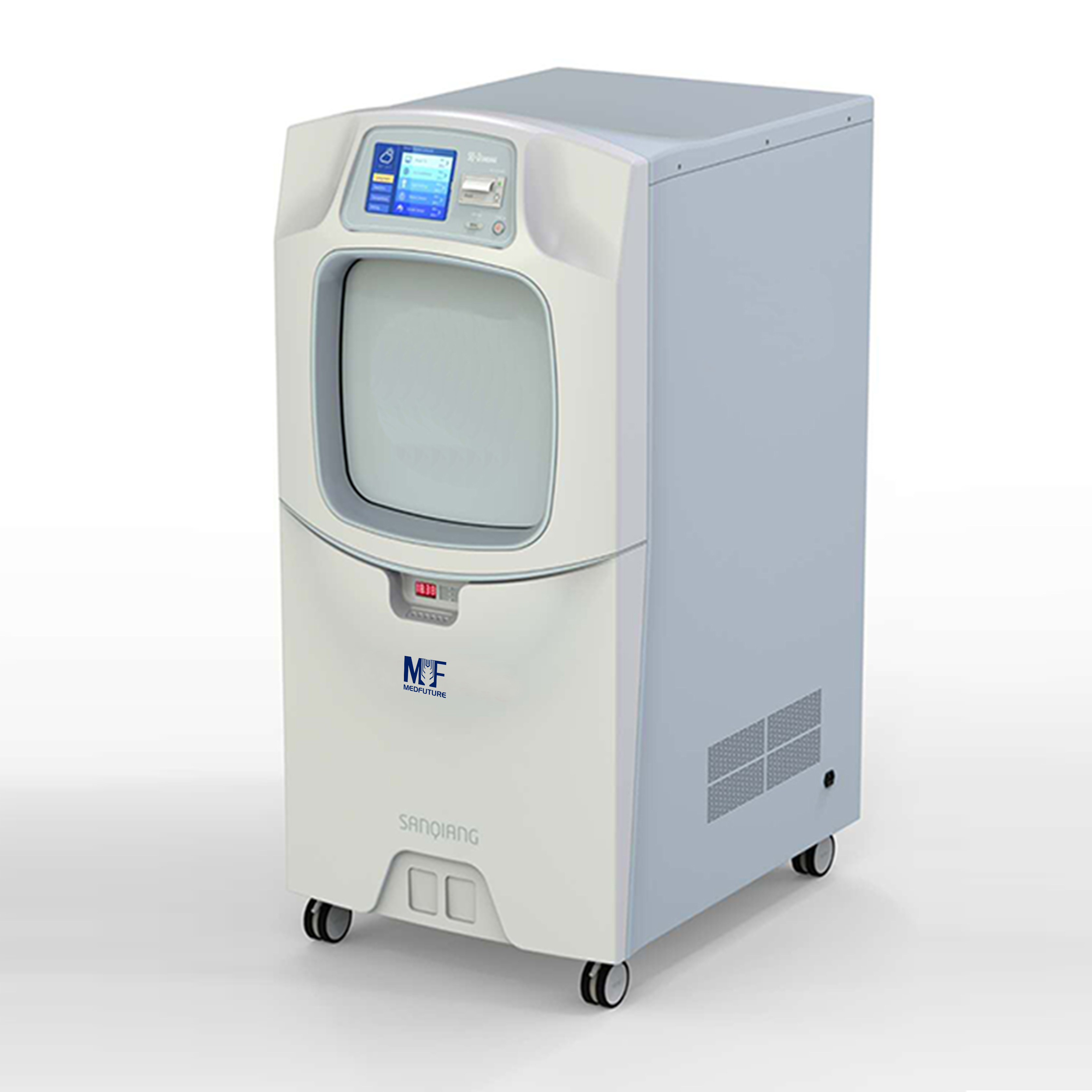

Low temperature plasma sterilization system is in low temperature, vacuum, plasma generated by high frequency electric field in the sterilization chamber, wherein the active material and the microbial metabolism of protein and nucleic acid react to destroy microorganisms and disrupt the microbial survival function, with H2O2 as a medium role in the microbial cell, further on killing microorganism.
Can be sterilized articles and materials: Hysteroscope, laparoscopy, laryngoscope, probe, rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cables, intracranial pressure sensor, cryotherapy probe, resection of the prostate, esophageal dilator, electrocautery apparatus, defibrillation electrode, laser head, metal, glass, silica gel rubber etc.
Features
1. Sealing door security and stability. Use the top rod driven electric lift door, running smoothly, there are security interlocking devices, to prevent the operators bring risks caused by false operation.
2. Configuration: Control system, vacuum pump, pressure sensor, metering device, solenoid valve and other key hardware are imported components. Multiple program selection, control system can be upgraded and maintained.
3. Low temperature sterilization and green environmental protection
4. Stable sterilization and the space of sterilization room is enough
Technical Parameters
Model | MFS-LP100(A) | MFS-LP130(A) | MFS-LP220(A) | ||
Volume(L) | 100 | 130 | 190 | ||
Standard Sterilization Time | 45 min | ||||
Sterilization Temperature | 50±5℃ | ||||
Sterilizing Agent | 60% H2O2 | ||||
Power Supply | AC220V±10%, 50Hz | 380V, 50Hz | |||
Consumption (KW) | 3.95 | 4.35 | 5.15 | ||
Installation Environment Temperature | 5-45℃ | ||||
Minimum Installation Space(W*D) mm | 2000*3000 | 2000*3000 | 2200*3000 | ||
Minimum Maintenance Distance | 1m | ||||
Sterilizing Room Size (W*D*H) mm | 700*430*360 | 750*450*400 | 820*510*460 | ||
External Size(W*D*H) mm | 1070*810*1780 | ||||
Package Size(W*D*H) mm | 1220*920*1860 | ||||
Net Weight(KG) | 290 | 310 | 400 | ||
Gross Weight(KG) | 312 | 318 | 435 |
