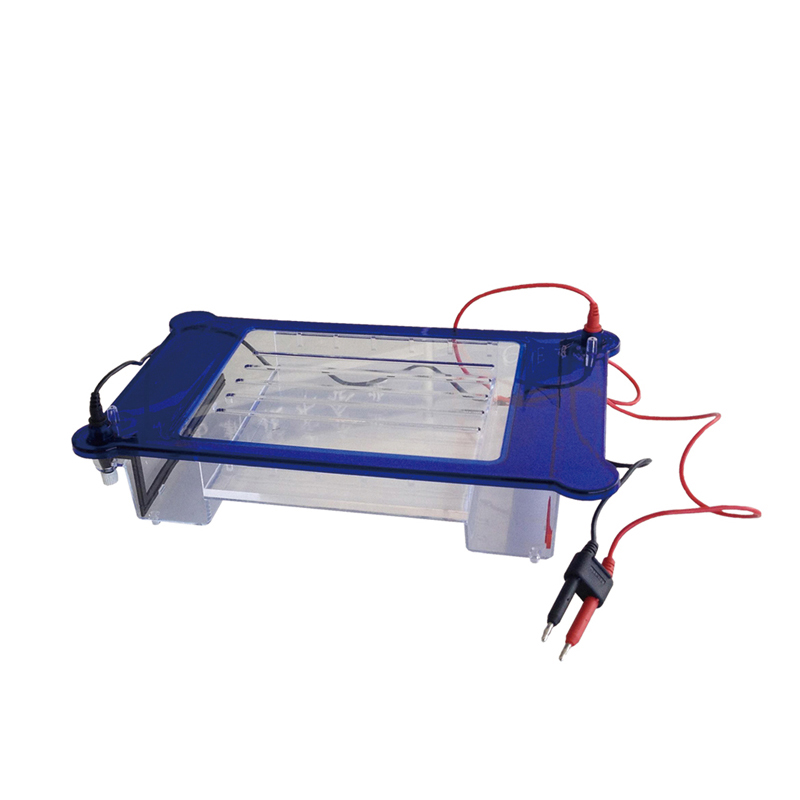

MF-ETH3 Horizontal Electrophoresis Tank
Features:
1. Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
2. Dismountable electrodes make maintenance easily.
3. special gel caster, prevents the gel leakage
4. The PC transparent top lid prevents liquid volatilization and electricity leakage.
5. Auto-switch-off when the lid is removed
6. Recommended power supply: MF-PS2/MF-PS3
Technical Parameters
| Model | MF-ETH3 |
| Gel Tray (D*W) mm | 200*200, 200*150, 200*100 |
| Comb Thickness | 1.0&1.8mm |
| Comb Throughput | 17,22, 36, 44 |
| NO. of Samples | 17~264 |
| Buffer Volume | 1800ml |
| Standard Accessories | Body tank with electrode*1 Gel tray 200x200mm*1Gel tray 200x150mm*1 Gel tray 200x100mm*1Gel Caster*11.0mm thickness17 wells comb*21.8mm thickness17 wells comb*21.0mm thickness 22 wells comb*21.8mm thickness 22 wells comb*21.0mm thickness36wells comb*41.8mm thickness36wells comb*21.0mm thickness 44wells comb*21.8mm thickness 44wells comb*2Leveling feet*4 Electrical Cable*1 User Manual*1 |
| External Size (W*D*H) mm | 397*230*83 |
| Package Size (W*D*H) mm | 530*390*220 |
| Gross Weight | 5 Kg |
