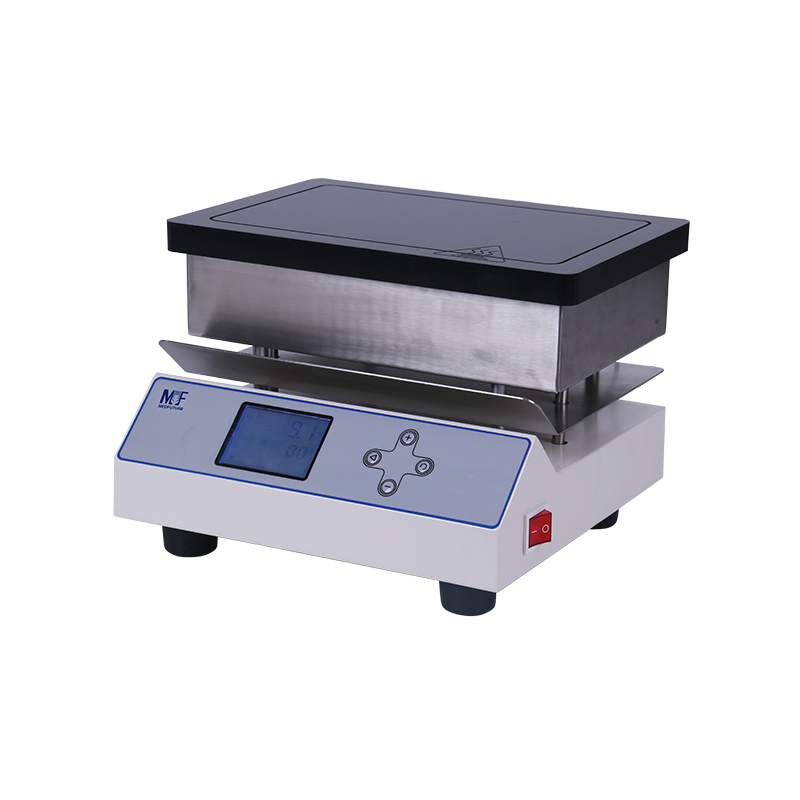

Graphite Hot Plate
Application:
It applies in drying articles in chemical analysis, physical determination, heat treatment and other temperature experiments in laboratories of industrial mining enterprise, medicine and health, environmental protection, biochemistry and scientific research and college labs etc.
Feature:
1. PID controller.
2. Totally enclosed high purity graphite, keeps temperature uniformity.
3. Double shell design, with anti-corrosion power coating, keeps the normal work of the instrument in acid environment.
Technical parameters:
| Model | MHP-G300 | MHP-G400 | MHP-G450 | MHP-G600 |
| Plate Size(mm) | 300×200 | 400×280 | 450×350 | 600×400 |
| Temp. Range | RT—450°C | |||
| Temperature Control Accuracy | ±1.0°C | |||
| Temperature Fluctuation Degree | ±1.0°C | |||
| Power Supply | AC 110/220V,50/60HZ | |||
| Consumption(W) | 1000 | 1500 | 2000 | 3000 |
| Package Size(W*D*H) mm | 350*330*260 | 520*450*345 | 570*520*345 | 740*580*345 |
| Gross Weight(kg) | 10 | 20 | 26 | 33 |
