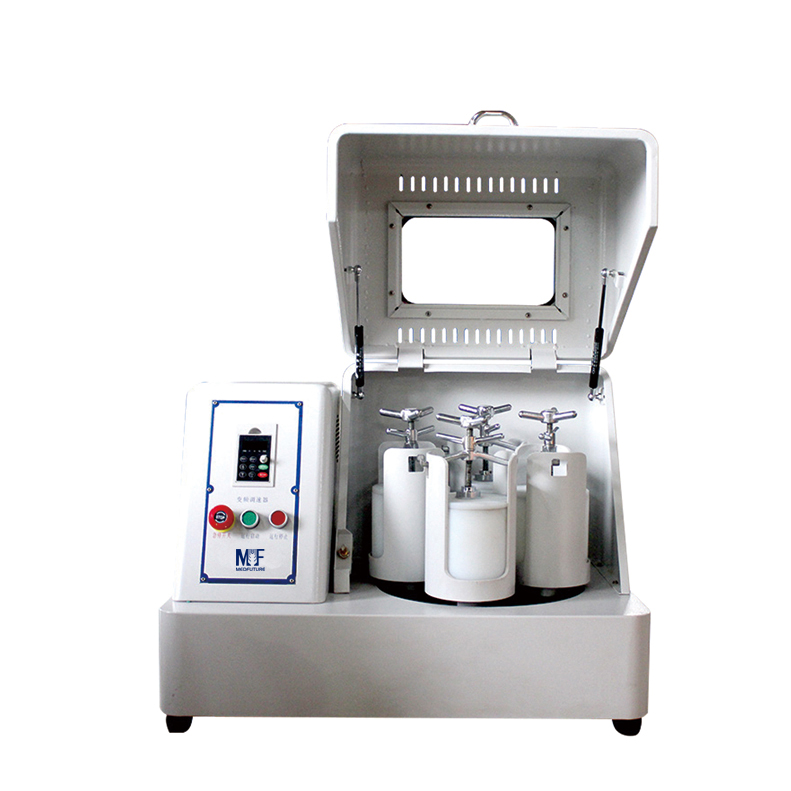

Vertical Planetary Ball Mill(Square Type)
Features:
1. 3D curve shape design.
2. Special gear with low noise.
Technical Parameters：
| Model | MF-BM2 |
| Capacity | 2L |
| Volume of Each Capacity | 50-500ml |
| Pot Quantity | 4pcs |
| Running Time Range | 1-9999min |
| Reciprocal Running Time | 1-999min |
| Adjustable Speed Revolution | 35-335rpm |
| Rotation | 70-670rpm |
| Noise | ≤60dB |
| Speed Control Mode | Frequency Control |
| Transmission Mode | Gear Drive |
| Working Mode | 2 or 4 pots can be used each time |
| Max Volume of Each Pot | 2/3 |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm |
| Out-put Granularity | Minimum Granularity can be reached to 0.1um |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation |
| Consumption | 0.75KW |
| Power Supply | AC 110/220V±10%, 50/60Hz |
| External Size(W*D*H)mm | 770*470*570 |
| Package Size(W*D*H)mm | 820*540*680 |
| Net Weight(kg) | 93 |
| Gross Weight(kg) | 98 |
