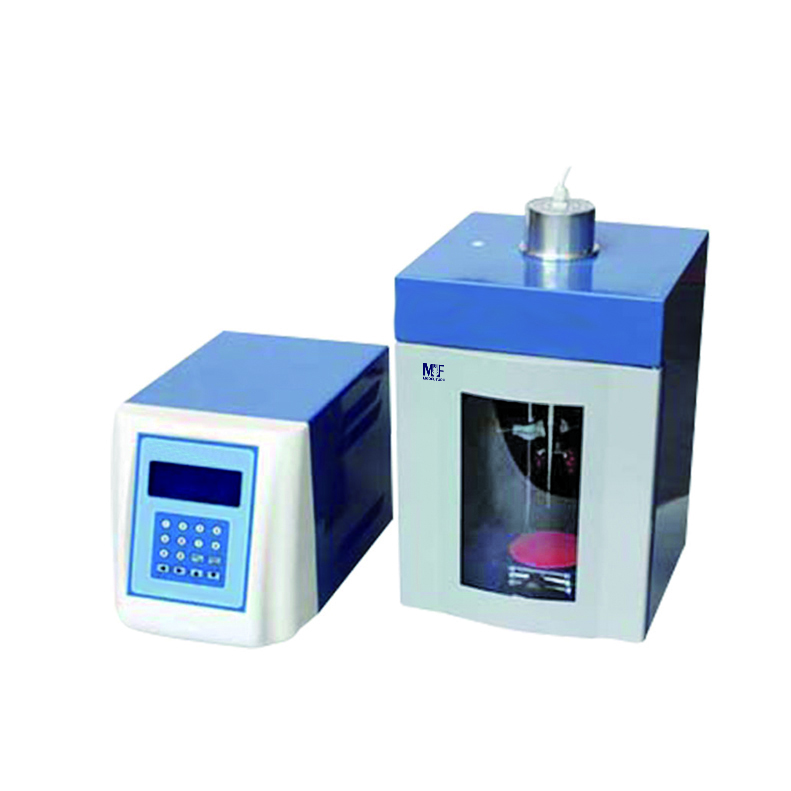

Ultrasonic Cell Disruptor

Widely used in the field such as biology, chemistry, microbiology, pharmacology, physics, zoology, agronomy, medical science, pharmacy for teaching, scientific research and production.

Inquire Now Next Product

Product details

Features:

1. LCD display.

2. 50 groups of program data can be stored.

3. Temperature monitor: over-temperature protection.

4. Other functions: automatic tracking the frequency, fault alarm.

Technical parameters:

Model	MUCD-150	MUCD-250	MUCD-500	MUCD-650		MUCD-950	MUCD-1200	MUCD-1500	MUCD-1800	MUCD-2000
Frequency(KHz)	20~25						19.5~20.
Crushing Capacity(ml)	0.2~150	0.2~250	0.2~400	0.2~500		0.2~700	10~1000	50~1500	50~1800	50~2000
Standard Amplitude-change Pole Φ(mm)	6						20	22	22	25
Optional Amplitude-change Pole Φ(mm)	2,3,6,8	2,3,6,8, 10	2,3,6,8, 10,12		2,3,6,8, 10,12	2,3,6,8, 10,15	10,12,15, 20,25	10,12,15, 20,22,25	10,12,15, 20,25	10,12,15, 20,25
Consumption(W)	0~150	0~250	0~500		0~650	0~900	0~1200	0~1500	0~1800	0~2000
Power Supply	AC220V/110V±110%, 50/60Hz
Package Size (WDH)	400400560mm(acoustic chamber) 570350470mm(main body)
Gross Weight(kg)	30

Technical Parameter for Amplitude Pole:

Size	φ2	φ3	φ6	φ8	φ10	φ12
Frequency(KHz)	20~25
Consumption(W)	0~250	0~400	20~600	50~600	100800	200~950
Crushing capacity	0.2~5	3~10	10~100	20~200	50~300	100~500

Size	φ15	φ20	φ22	φ25	φ28
Frequency(KHz)	20~25/19.5~20.5	19.5~20.5
Consumption(W)	300~1000	400~1200	400~1200	800~1800	1000~2200
Crushing capacity	100~600	100~1000	200~1000	500~1200	500~2000
