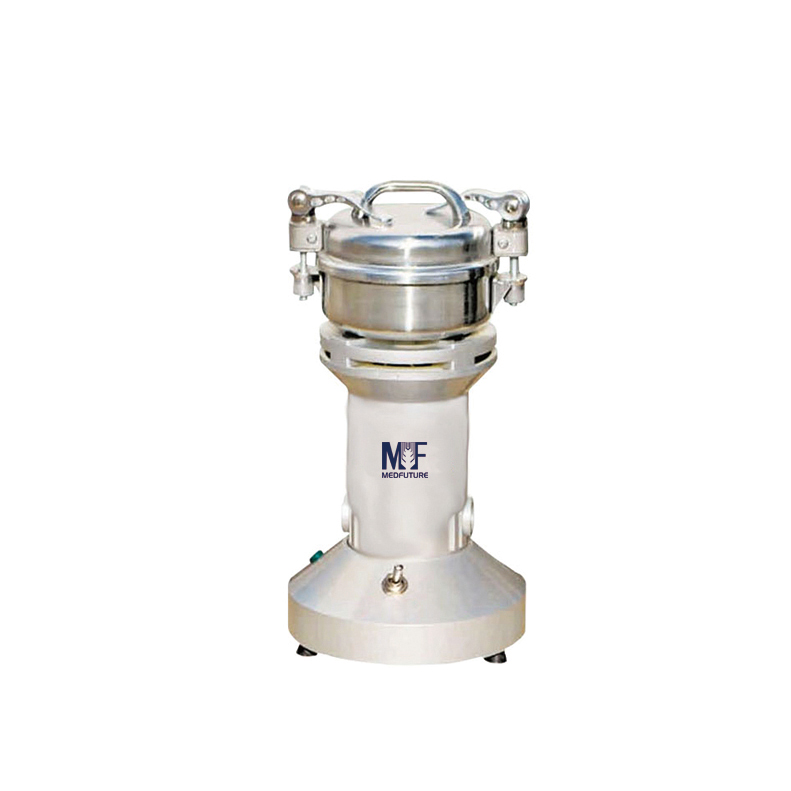

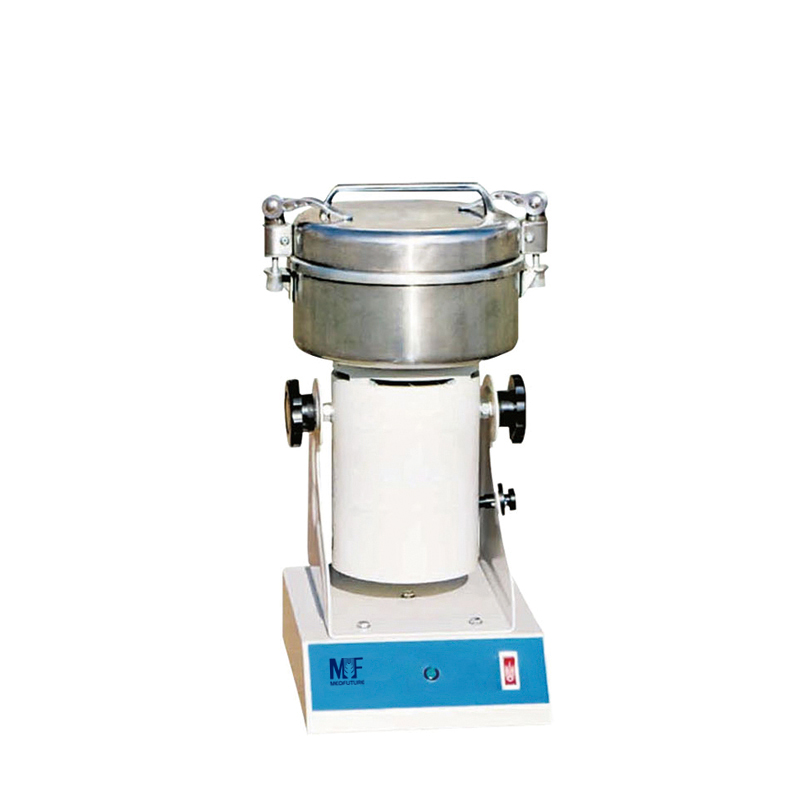

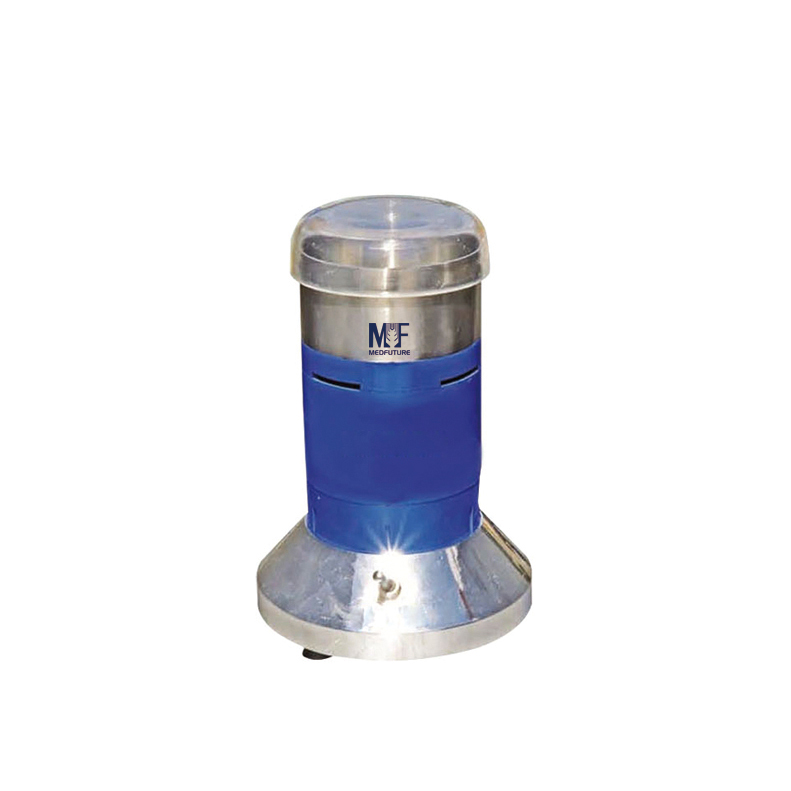

High-Speed Universal Disintegrator
It applies to industries, agriculture, mining enterprises, health and medical units, coal, geological and other scientific research institutions for grain, soil, medicine, dinas and mineral substance grinding treatment.
Technical Parameter:
| Model | MFUD-80 | MFUD-100 | MFUD-200 | MFUD-400A | ||
| Speed (r/min) | 10000 | 26000 | 26000 | 26000 | ||
| Size of Grinding Room (mm) | Φ80*40 | Φ100*40 | Φ125*56 | Φ150*80 | ||
| Grinding (mesh) | 40-200 | |||||
| Input Quantity (<G/time) | 50 | 100 | 200 | 400 | ||
| Consumption(W) | 200 | 800 | 800 | 1000 | ||
| Power Supply | AC220V, 50Hz | |||||
| External Size(W*D*H) mm | Φ110*210H | Φ160*320H | Φ160*360H | 230*190*420 | ||
| Net Weight(Kg) | 2.5 | 4 | 5 | 13 | ||
| Gross Weight(Kg) | 3 | 5 | 6 | 14 | ||
