Fume Hood

Inquire Now None

Advantages:

1. UV lamp for sterilization.

2. Resistant to weak acid and alkali.

3. Adjustable air speed :9 levels.

4. Motorized front window, height adjustable.

5. Microprocessor control system, LED display.

6. With memory function in case of power-failure.

Technical Parameters：

Model		MF-FH1000A	MF-FH1200A	MF-FH1500A	MF-FH1800A
External Size (WDH) mm		10408002200	12408002200	15408002200	18408002200
Internal Size (WDH) mm		820670730	1020670730	1320670730	1620670730
Work Surface Height		850mm
Max Opening		500mm
Air Velocity		0.3~0.8m/s
Noise		≤60dB
Exhaust Duct		PVC, Standard length: 4 meters.
		Φ300mm
Pipe Strap		1 pc
LED Lamp		8W*1	12W*1	16W*1	16W*1
UV Lamp		Emission of 253.7 nanometers for most efficient decontamination
Blower		Built-in centrifugal blower; Speed adjustable.
Front Window		5mm toughened glass; Motorized; Height adjustable.
Power Supply		AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption		400W	400W	500W	500W
Material	Exterior	Cold-rolled steel with anti-bacteria powder coating.
	Interior	High grade melamine board with good acid and alkali resistance function
	Work Table	Chemical resistant phenolic resin

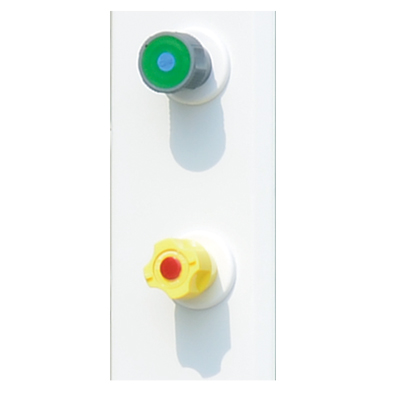

Standard Accessories		UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinetTotal load of 2 waterproof sockets: 500W4-meter PVC exhaust duct, pipe strap
Optional Accessory		Active carbon filter
Gross Weight		286kg	317kg	350kg	400kg
Package Size (WDH) mm	Main Body	11909901690	13909901690	16909901690	19909901690
	Base Cabinet	1290990980	1390990980	1690970970	1990990980
