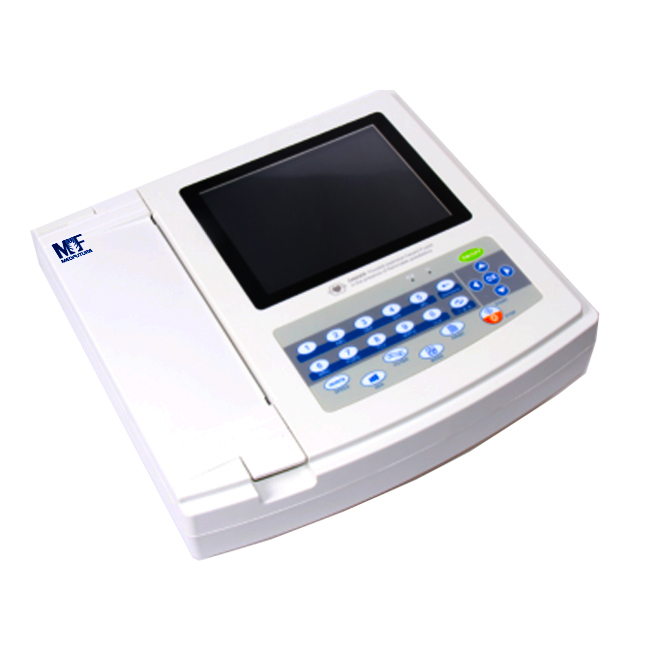

ECG1200 Electrocardiogragh Digital 12-Channel ECG

Description:

ECG1200 12-channel ECG is such a kind of electrocardiograph, which gathers 12-lead ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its users are mainly hospitals and all kinds of medical establishments.

Inquire Now Next Product

Product details

Features:

1. 800*600 dots high resolution color LCD

2. Convenient and quick button setup

3. Automatic/manual mode to record and display ECG waveform

4. Auto-measure of ECG waveform parameter

5. Multiple switchable interface language

Optional Function:

1. Stress ECG analysis software

2. ECG-Sync software

Technical Parameters:
Safety Classification	Class I CF applied part, there is defibrillation and pacing protection circuit in it
Lead	Standard 12-lead
Input Mode	Floating and debrifillation protection
Patient Leak Current	<10uA
Input Impedance	≥50MΩ
Frequency Response	0.05Hz~150Hz (-3dB~+0.4dB)
Time Constant	≥3.2s
CMRR	>60dB, >100dB (Adding filter)
Enduring Polarization Voltage	±500mV
Noise Level	≤15uVp-p
EMG Interference Filter	25Hz/35Hz (-3dB)
Recording Way	Thermal printing system
Sensitivity Selections	2.5, 5, 10, 20, 40mm/mV, error: ±5%. Standard sensitivity: 10mm/mV±0.2mm/mV
Specification for Recording Paper	210mm(W)×20m(L), high-speed thermal paper
Paper Speed	Auto record: 25mm/s, 50mm/s, error: ±5% Rhythm record: 25mm/s, 50mm/s, error: ±5% Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error: ±5%
Auto Record	Record setup acording to auto record format and mode, automatically changing leads, measuring and analysing
Rhythm Record	Record setup acording to rhythm record format and mode, automatically measuring and analysing
Manual Record	Record setup acording to manual record format, manully changing leads
Measurement Parameters	HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Power Supply/Frequency	AC: 100~240V, 50/60Hz DC: 14.8V, 3700mAh rechargeable lithium battery
Package Size (WDH)	420375220mm
Gross Weight	6kg
