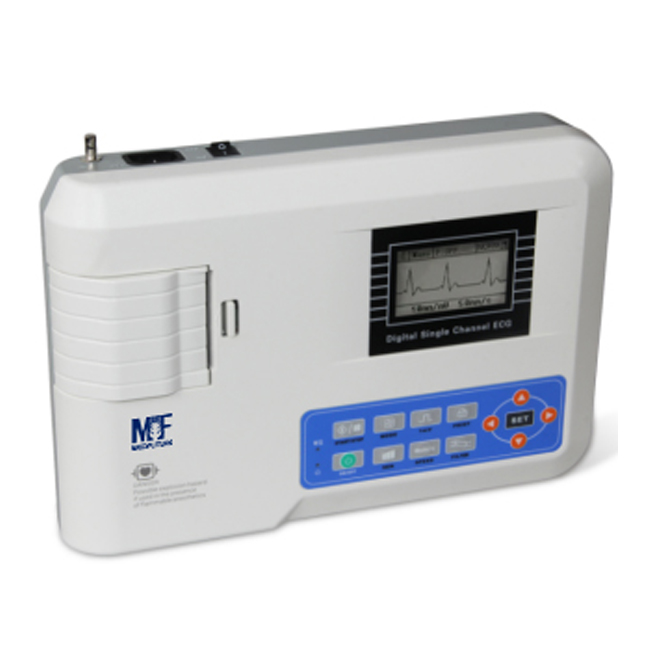

ECG100 Electrocardiogragh Single-Channel ECG
Inquire Now
None
Features:
1. Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2. High-resolution thermal printing system (8 dots/mm), recording frequency: up to 150Hz.
3. In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
4. Display waveform clearly and accurately by STN-LCD.
5. Multi-language interface and report: Chinese, English, Spanish, Turkish, Italian, French, German.
| Technical Parameters: | |
| Safety Classification | Class I, type CF and defibrillation-proof applied part |
| Input Mode | Floating and debrifillation protection |
| Input Circuit Current | ≤50nA |
| Input Impedance | ≥50MΩ |
| Patient Leak Current | <10uA |
| Calibration Voltage | 1mV |
| Sampling Accuracy | 12-bit |
| Sampling Frequency | 800Hz |
| Frequency Response | 0.05Hz~150Hz (-3dB~+0.4dB) |
| Time Constant | ≥3.2s |
| CMRR | >60dB, >100dB |
| Noise Level | ≤15uVp-p |
| EMG Interference Filter | 35Hz (-3dB) |
| Recording Mode | Thermal printing system |
| Sensitivity | 5, 10, 20mm/mV±5%, standard sensitivity: 10mm/mV±2% |
| Paper Speed | 20mm/s, 50mm/s, ±5% |
| Specification for Recording Paper | 50mm(W)×20m(L) |
| Standard Accessories | Lead cable*1, Limb electrode*1, Chest electrode*1, Thermal recording paper*1, Power cord*1, Earth wire*1, User manual*1 |
| Optional Accessories | ECG electrode, Bag, Conductive gel |
| Power Supply | AC: 100~240V, 50/60Hz DC: 7.4V/2000mAh rechargeable lithium battery |
| Package Size (W*D*H) | 410*310*210mm |
| Gross Weight | 3.5kg |
