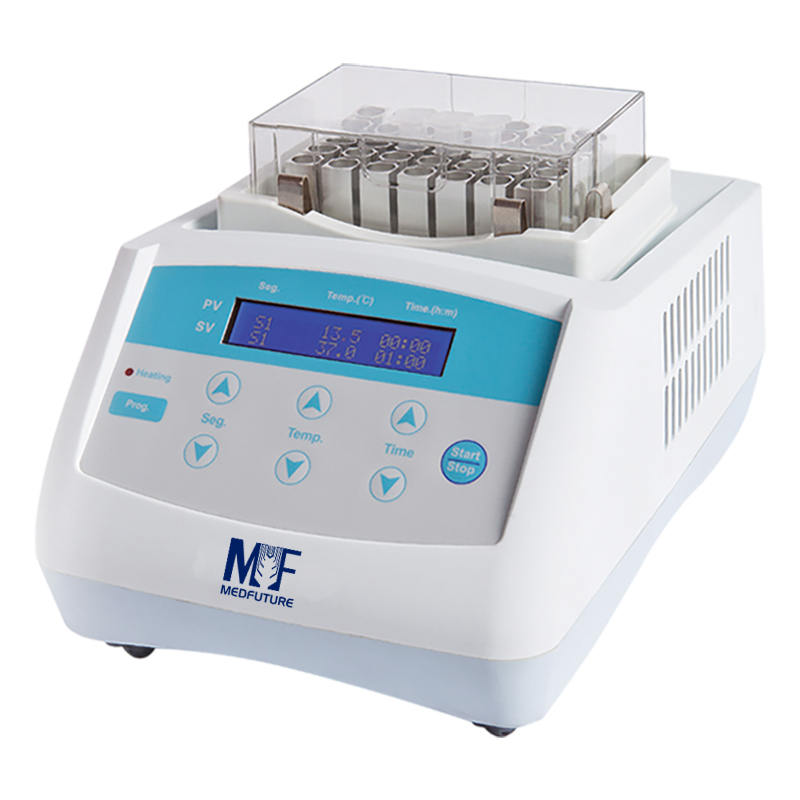

Dry Bath Incubator(100H 100C series)
Features:
1. LCD display.
2. Fast heating speed uniform heating, accurate temperature control, high stability.
3. Built in temperature calibration function, automatic fault detection and buzzer alarm function.
4. Built in over-temperature protection device.
5. Various blocks for convenient replacement, easy for cleaning and disinfection.
Technical Parameters:
| Model | MDBI-100H(Heating) | MDBI-100C(Cooling) |
| Temp. Control Range | RT+5~100℃ | RT-10~100℃ |
| Heating Time | ≤15min (20℃~100℃) | |
| Temp. Control Accuracy | ≤±0.5℃(100℃) | |
| Block Temp. Discrepancy | 0.3℃(40℃) | |
| Block Temp. Uniformity | ≤±0.3℃ | |
| Display Accuracy | 0.1℃ | |
| Timing Range | 99h59min | |
| Max Temp. | 100℃ | |
| Cooling Time | / | ≤30min(RT~RT-30℃) |
| Consumption | 150W | |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| External Size (W*D*H) mm | 270*196*170 | |
| Package Size (W*D*H) mm | 340*330*260 | |
| Net/Gross Weight(kg) | 2.2/2.7 | |
| Block Selection | Refer to “Exchangeable block for MDBI-100H/MDBI-100H series” | |
Exchangeable Blocks for MDBI-100H/MDBI-100C series
| Model | Description |
| A | 96*0.2ml PCR plate |
| B | 54*0.5ml |
| C | 35*1.5ml |
| D | 35*2.0ml |
| E | 20*0.5ml+15*1.5ml |
| F | 24*Dia.≤φ12mm |
| G | 32*0.2ml+25*1.5ml |
| H | 32*0.2ml+10*0.5ml+15*0.5ml |
| I | 103*67*30(water bath block) |
| J | 96*0.2ml (flat bottom) |
| K | 24*5ml |
| L | 12*5ml |
| M | 6*50ml |
| N | Customized Blocks |
