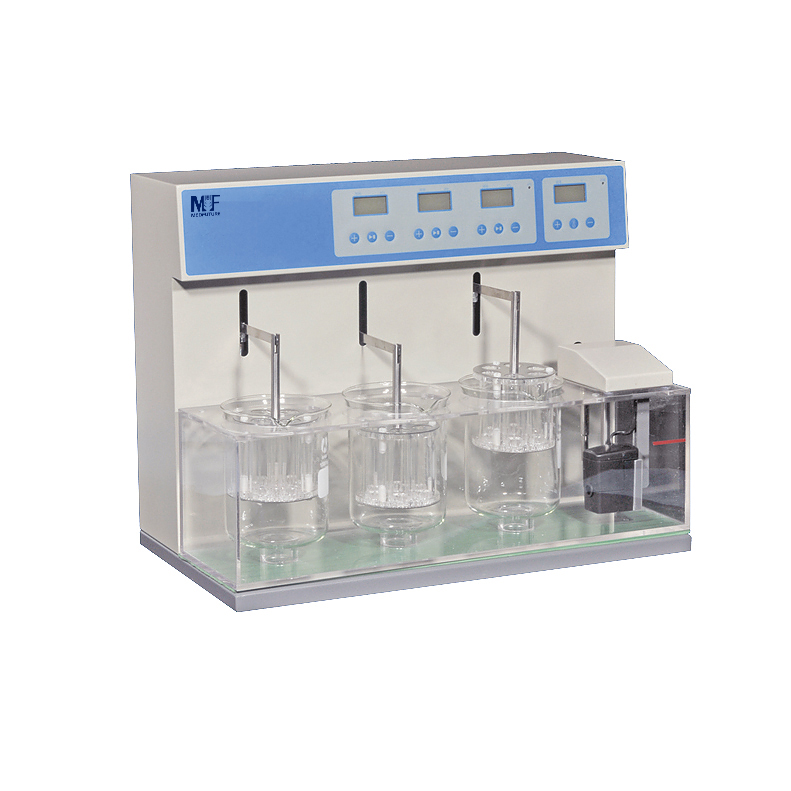

Disintegration Time Limit Tester I

Introduction:

Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance with Chinese Pharmacopoeia.

Inquire Now None

Product details

Features:

1. 1 set of basket.

2. The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.

3. The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.

4. It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.

5．The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.

Technical Parameters:

Model	DTLT-I
Temperature prefabrication range	Temperature prefabrication range: room temperature
Temperature control accuracy	±0.3℃
Timing prefabrication range	1min～900min
Time control accuracy	±0.5min
Work noise	＜60db
Display	LED display with touch button
Number of lifting baskets	1 set
Lifting frequency of basket	(30～31) times/min
Lifting distance of basket	(55±1) mm
Minimum spacing from screen to beaker bottom	25mm±2mm
Mesh size	standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
Power supply	220V50Hz
Total power	600W
